K23 K34 Series Manu -manong Rotating Valve 4 na paraan

Model:K34R8

Maligayang pagdating sa pakyawan o na -customize na K23 K34 Series Manu -manong Rotating Valve 4 na paraan mula sa aming pabrika sa anumang oras. Bibigyan ka namin ng mga presyo ng diskwento sa pabrika para sa aming mga produkto. Ang OLK ay K23 K34 Manu -manong umiikot na balbula 4 na paraan ng mga tagagawa at mga supplier sa China.

Magpadala ng Inquiry

Paglalarawan ng Produkto

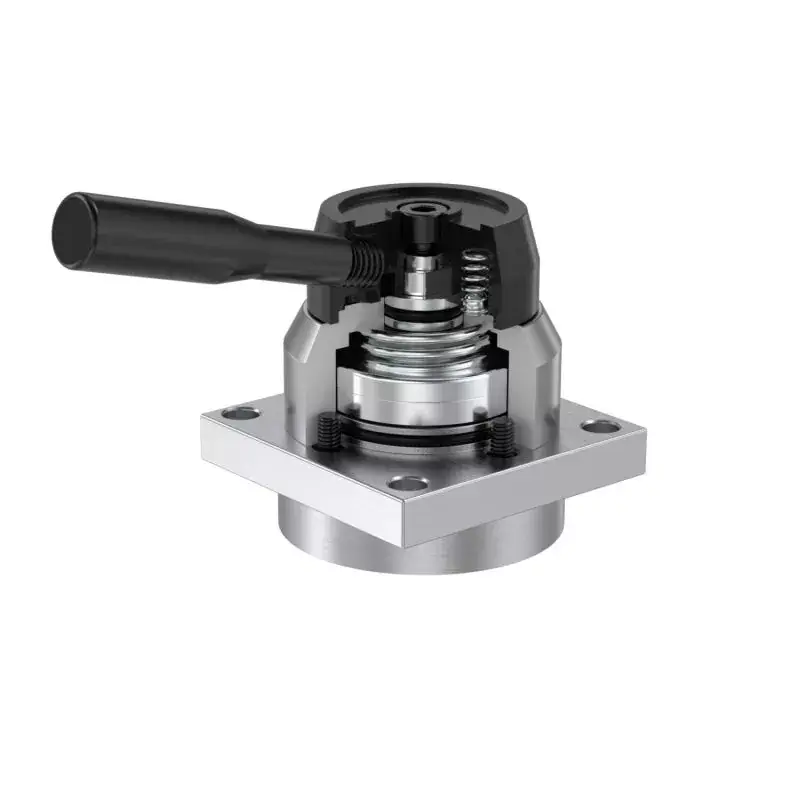

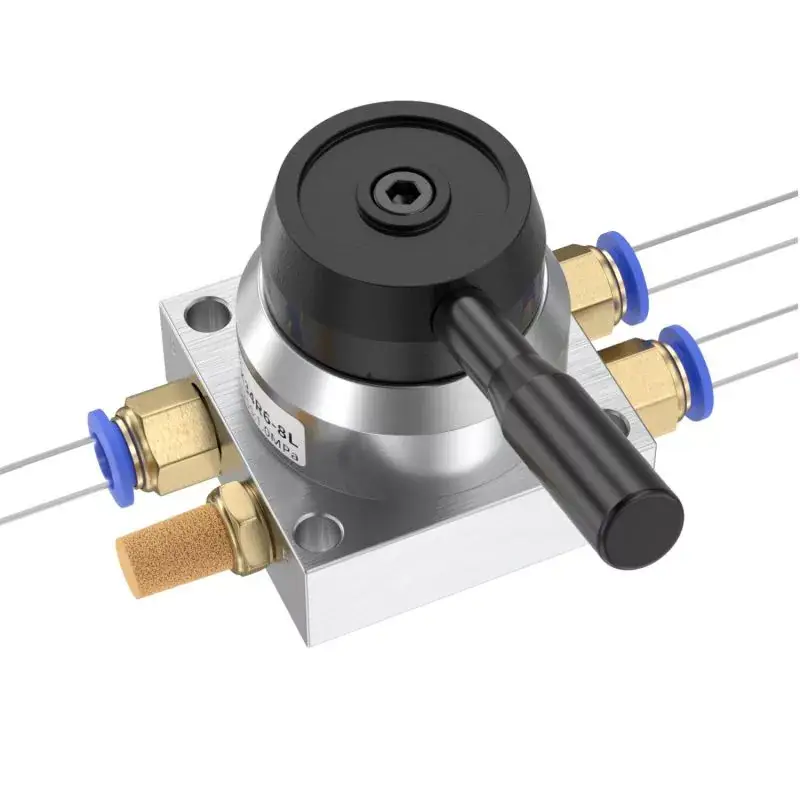

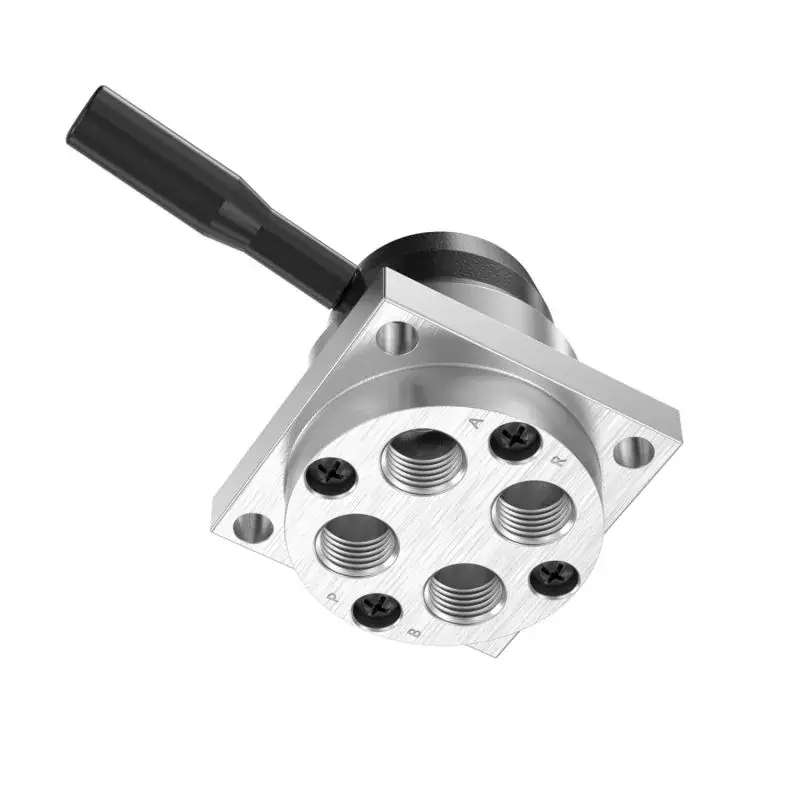

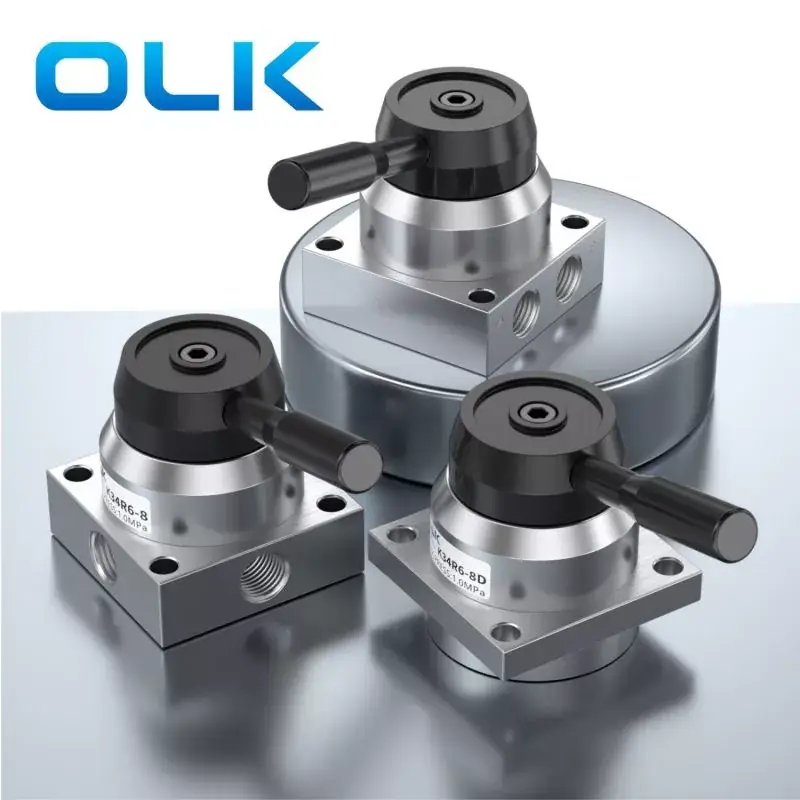

Ouleikai (OLK) manufactures 2-position 4-way and 3-position 4-way K34 manual rotary valves/direct acting cylinder control directional valves. They feature aluminum alloy valve bodies that are corrosion-resistant and rustproof. These high-strength valve bodies can operate continuously for 48 hours. K34 valve precision threaded ports come with a removable handle, and the bottom has mounting holes for easier installation.

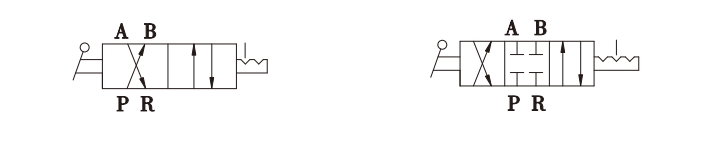

SYMBOL:

Ordering code:

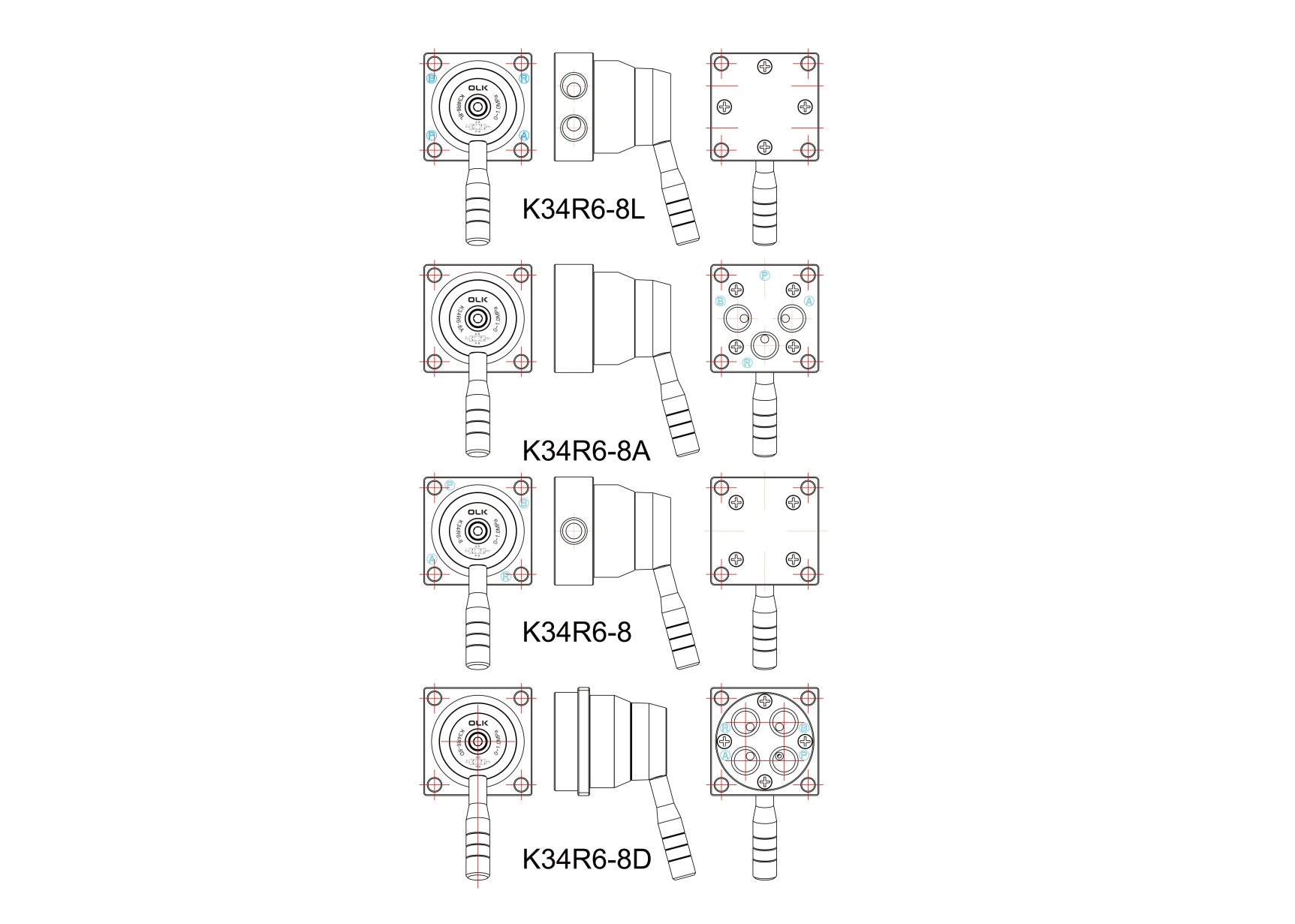

K	34	R6	-	8	L
Model:	Code	Funtion:		Port size:	Installation:
K：K series hand manual rotating valve	24:2 position 4 way	R6:Hand control		8:G1/4	Blank:One hole on one side
	34:3 position 4 way				L:Double-hole on opposite sides
					A:Three holes at the bottom
					D:Four holes on the bottom

K23 K34 Series Manual Rotating Valve 4 Way Ordering Code

Flip Angle	105°
Power Consumption	≤80W (Standby≤0.5W)
Load Bearing	45KG-65KG
Color	High Gloss White
Lifting Height	65cm-85cm (Can Be Equipped With A Second Lift)
Remote Control Distance	50 Meters (Open Space)

K23 K34 Series Manual Rotating Valve 4 Way General parameters

Model	K34R6-8
Working medium	Air（Filter through a filter screen of over 40μm）
Action mode	HAND control
Port Size	Inlet=Outlet=PT1/4
Pressure range	0.15-0.8MPa (21-114psi)
Position	3 position 4 way
Woking Pressure	‘-10-60℃
Proof pressure	1.5MPa (215psi)

Mga Hot Tags: K23 K34 Series Manu -manong Rotating Valve 4 Way, China, Tagagawa, Tagabigay, Pabrika
