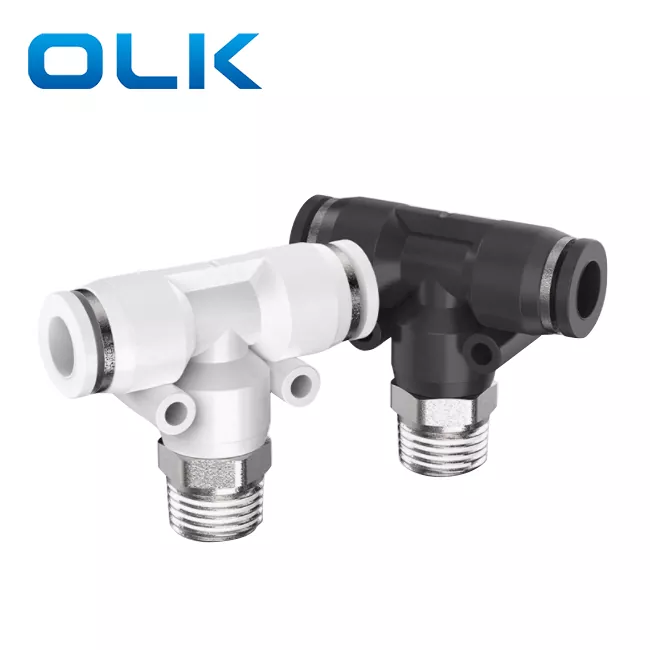

Pb branch tee push sa tubo na umaangkop

Pag -order ng code

PB

8

-

01

Modelo

Laki ng tubo (sukatan)

Uri ng Thread (55 ° Straight Tube Thread)

Ang serye ng PB ay umaangkop

4: 4mm

01: G1/8

6: 6mm

02: G1/4

8: 8mm

03: G3/8

10: 10mm

04: G1/2

12: 12mm

14: 14mm

16: 16mm

Fluid

Air/Water (Kondisyon)/Vacuum

Operating pressure

0-1.0Mpa

Presyon ng vacuum

-100kpa (10 torr)

Temperatura ng pagpapatakbo

-10-60 ℃

Materyal

Nylon (PA), Polyurethane (PU)

Inch tube fitting

Metri tube fitting

φd

R

A

B

E

H2

φd

PB5/32-M5

PB4-M5

4

M5

4.5

25.4

18.6

10

/

PB5/32-01

PB4-01

4

R1/8

7

25.4

18.6

10

/

PB5/32-02

PB4-02

4

R1/4

9

27.8

18.6

14

/

PB1/4-M5

PB6-M5

6

M5

4.5

26.8

20.8

12

3.5

PB1/4-01

PB6-01

6

R1/8

6.5

37.6

20.8

12

3.5

PB1/4-02

PB6-02

6

R1/4

9

30

20.8

14

3.5

PB1/4-03

PB6-03

6

R3/8

10

30.6

20.8

17

3.5

PB1/4-04

PB6-04

6

R1/2

10

32.5

20.8

21

3.5

PB5/16-01

PB8-01

8

R1/8

8

31.5

22.9

14

4.5

PB5/16-02

PB8-02

8

R1/4

10

33

22.9

14

4.5

PB5/16-03

PB8-03

8

R3/8

10

33.6

22.9

17

4.5

PB5/16-04

PB8-04

8

R1/2

11

35

22.9

21

4.5

PB3/8-01

PB10-01

10

R1/8

8

37

27.8

17

4

PB3/8-02

PB10-02

10

R1/4

10

38

27.8

17

4

PB3/8-03

PB10-03

10

R3/8

10

38

27.8

17

4.5

PB3/8-04

PB10-04

10

R1/2

11

39

27.8

21

4.5

PB1/2-01

PB12-01

12

R1/8

8

37.5

29.5

19

5

PB1/2-02

PB12-02

12

R1/4

10

40

29.5

19

5

PB1/2-03

PB12-03

12

R3/8

10

40

29.5

19

5

PB1/2-04

PB12-04

12

R1/2

11

41

29.5

21

5

PB14-03

16

R3/8

11

46.3

34.5

24

4

PB14-04

16

R1/2

12

47.3

34.5

27

4

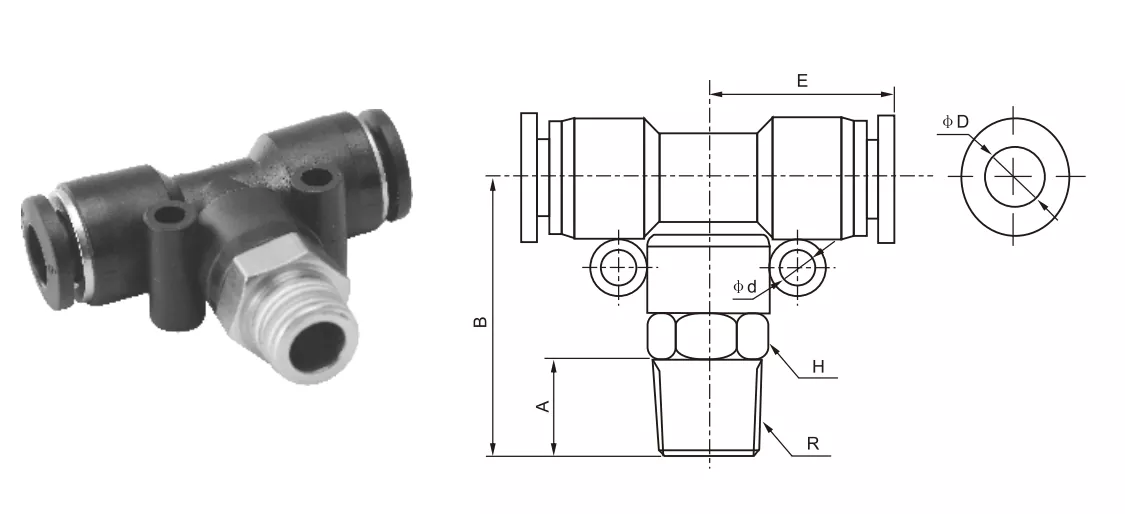

Pangalan/Uri

Paglalarawan ng istraktura ng interface

Patakbuhin ang Tee (PD)

Ang pangunahing daloy ng hangin ay tuwid, at ang mga sanga ay pinangunahan nang patayo

Branch Tee (PB)

Dalawang interface ang konektado sa tamang mga anggulo, ang isa sa sangay ng "T"

Pantay na tee

Tatlong port na may parehong sukat
